Zutari’s scope included the complete design optimisation and detailed engineering of the hydropower scheme. Key components of the project include:

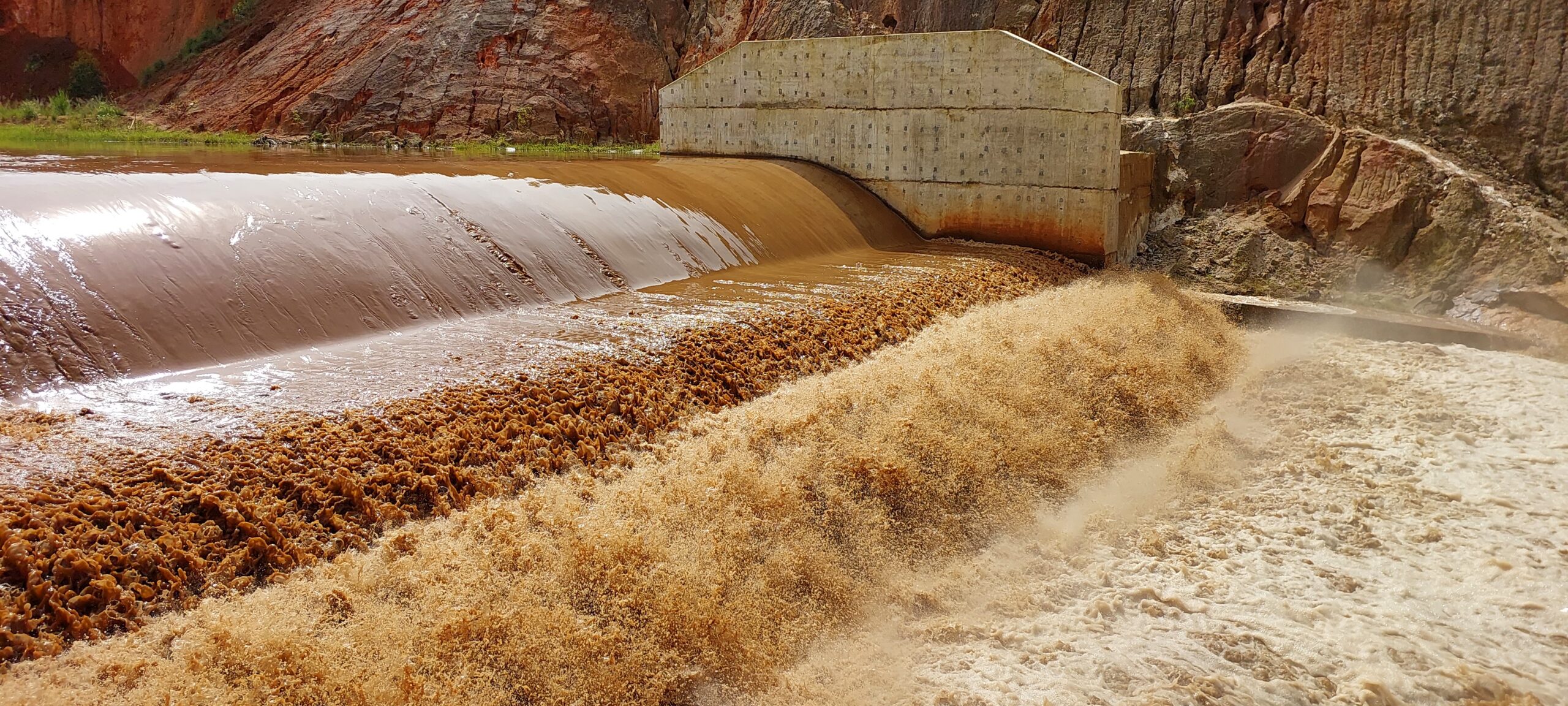

- A 7 m high dam wall
- A 35 m long, 12 m wide desanding chamber

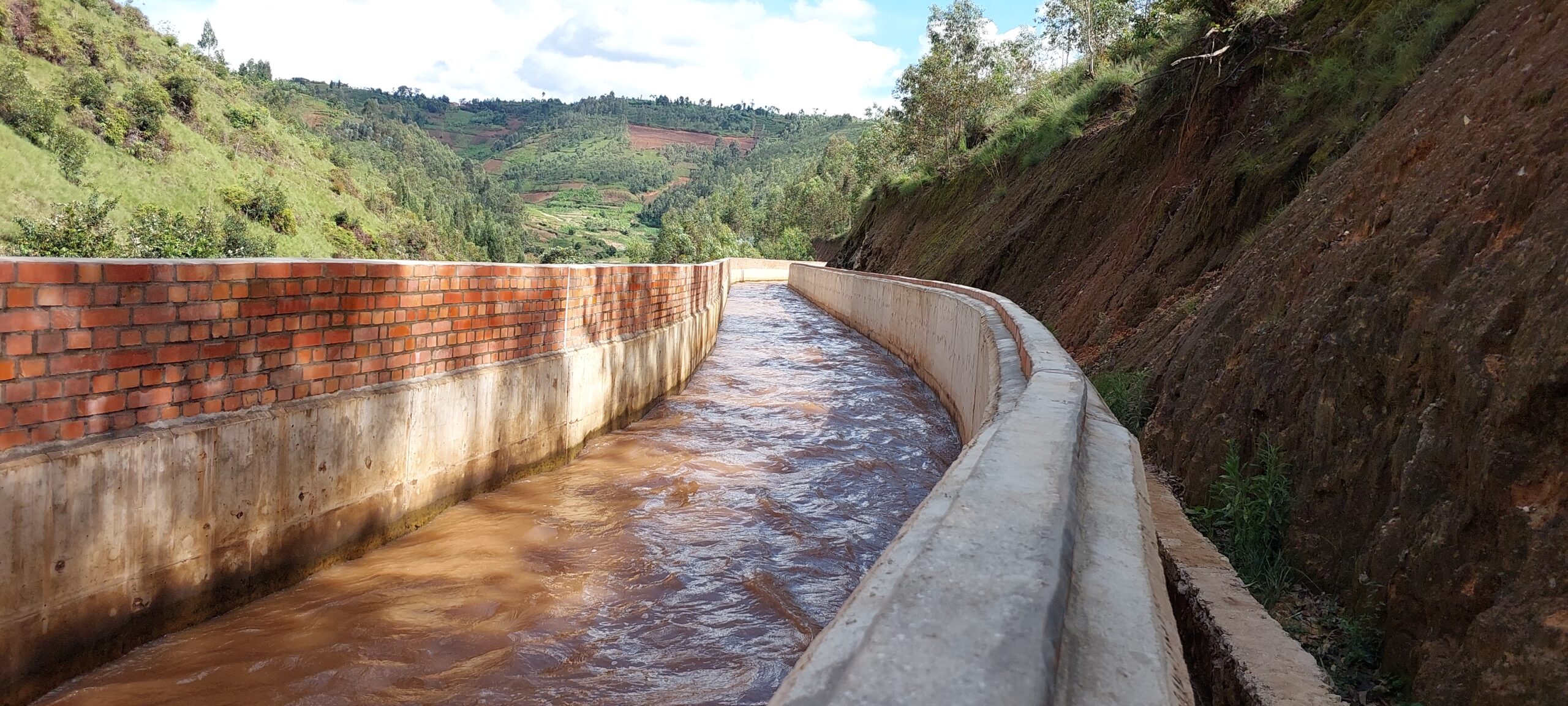

- A 420 m conveyance canal with a flow rate of 12.6 m³/s
- A forebay with a reject structure

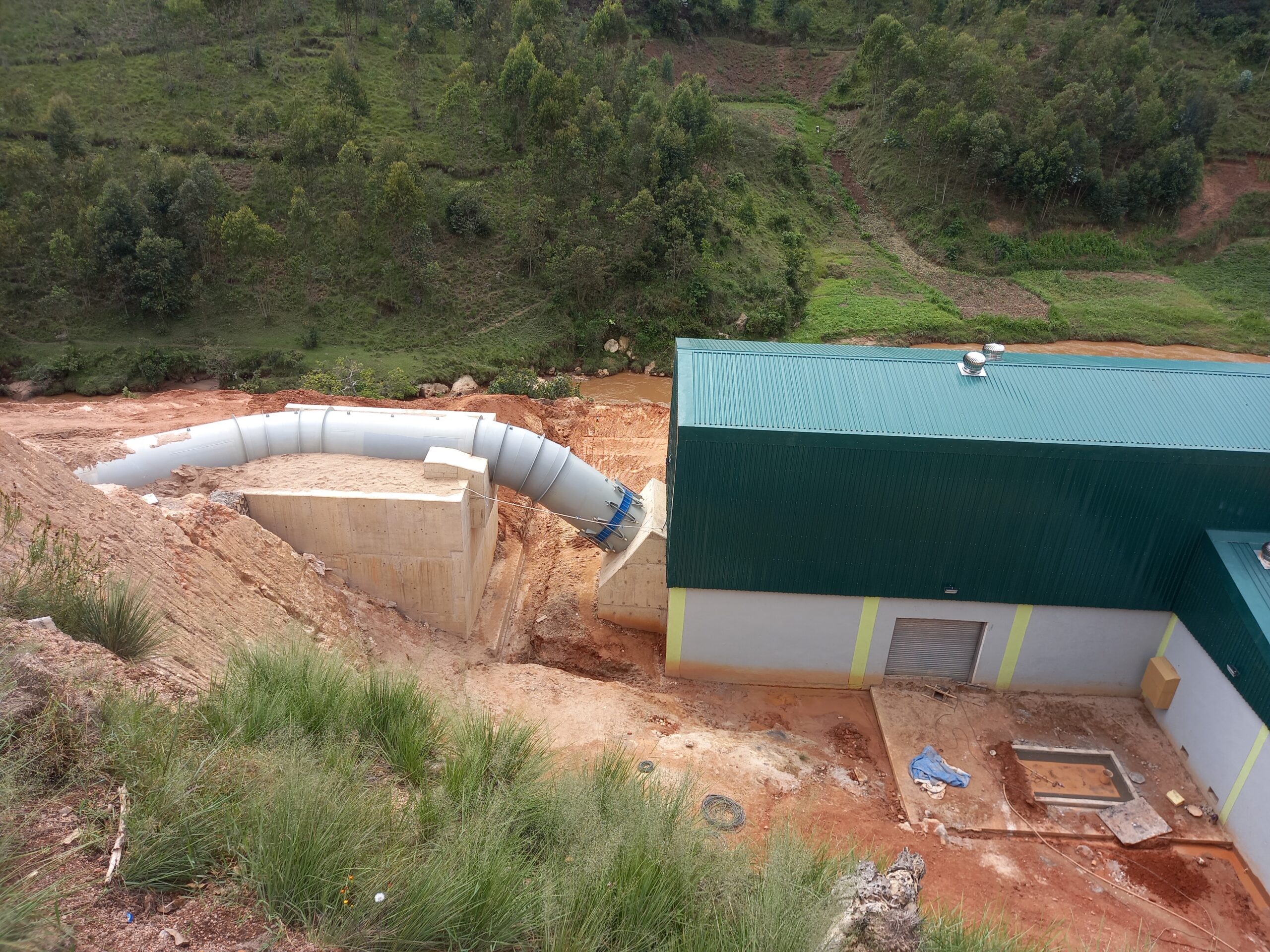

- A single 2.2 m diameter penstock

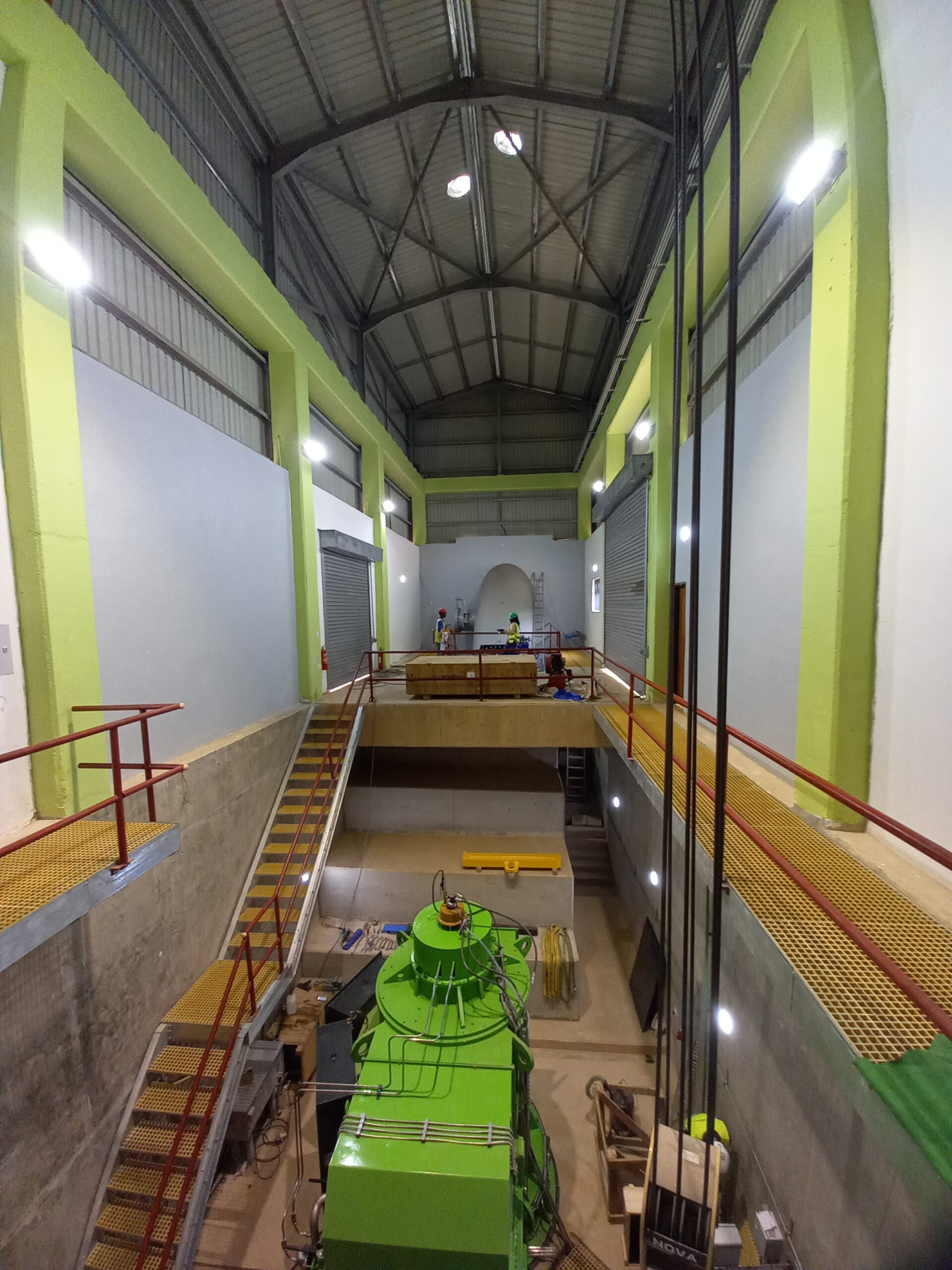

- A powerhouse housing a 2.3 MW vertical Kaplan turbine
Zutari also conducted a detailed geotechnical investigation, prepared tender documentation, managed procurement, supervised construction, coordinated factory acceptance tests and supported the commissioning of the plant.
